THE CASSOWARY.™

5 – THE CASSOWARY .™ Designed for high ceilings 10 ft or higher, this simple but elegant fan will add kinetic character to your space.

The fan body is available in painted flat black iron or patina iron and come with raw iron pulleys. The painted flat black model and patina iron fans come with raw iron pulleys that can be upgraded to solid polished bronze pulleys. The flat black painted model fan blades are built with 5 ft diameter sapele wood while the iron patina fan blades are fashioned from solid mahogany.
A 1-inch wide flat belt or a round leather belt can power the fan. Both the round belt pulleys and the flat pulleys are 6-inch in diameter. The black painted models cannot be customized.
The blades can be tilted to regulate or change the airflow.
15” optional finished or unfinished solid mahogany base is available.

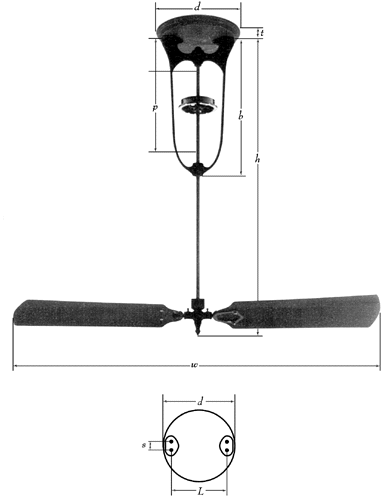

Standard Specifications
h – Overall Height	3 ft.
Optional heights: 4ft, 5 ft
b – Body Height	24 in.
p – Distance from bottom pulley to base of body (variable)	6-18 in.
w – Diameter of blades	5 ft.
Mounting Dimensions
L – Distance between mounting leg centers	10 in.
s – Distance between centers of lag screw holes	2.5 in.
Optional Mahogany Mounting Disk
d – Disk Diameter	15 in.
t – Disk Thickness	1.5 in.
