THE IBIS with Eel Hanger or Dragon Hanger Design ™

IbisIronEel_page — 11 – The Ibis with Eel Hangers (Standard) Click to enlarge

11 – THE IBIS with Eel Hanger or Dragon Hanger Design
For ceilings 10ft and higher the Ibis is a great choice for that “high Victorian” look. The Ibis features two unique hanger designs, the standard Eel hanger design and the optional Dragon hanger design. Both Ibis designs are only available in solid oil rubbed bronze with solid polished bronze pulleys. The blades are fashioned from solid quarter sawn mahogany, 4ft, 5ft and 6ft finished diameters or 4ft to 6ft unfinished diameters. The blades can be tilted to regulate or change the airflow.
17 in optional finished or unfinished disk is available

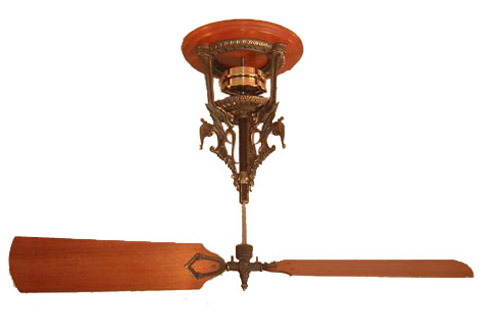

IbisIronDragon_page — 11- The Ibis with Dragon Hangers (Optional) Click to enlarge.

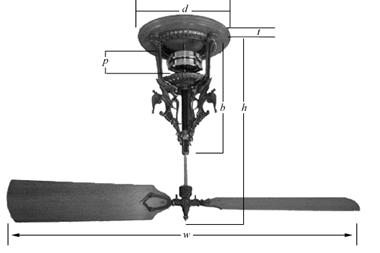

Standard Specifications
h – Overall Height	26 in.
Optional heights: 3ft, 4ft, 5ft
b – Body Height	21 in.
p – Distance from bottom pulley to base of body (variable)	6 in.
w – Diameter of blades	5 ft.

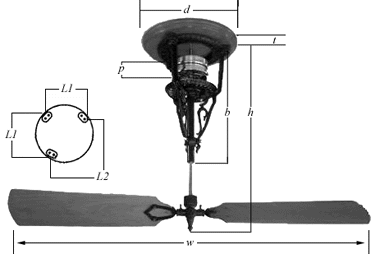

Mounting Dimensions
L1 – Distance between mounting leg centers	10.5 in.
L2 – Distance between mounting leg centers	11.5 in.
Optional Mahogany Mounting Disk
d – Disk Diameter	17 in.
t – Disk Thickness	1.5 in.
