THE LARGE OSTRICH™

10 – THE LARGE OSTRICH .™ Designed by Woolen Mill, the Large Ostrich uses elements of both the Small Ostrich and the Cassowary. Its drop begins at 3ft and may be extended to 5ft drop. This fan is a good choice for ceilings 10ft and higher. The fan body is available in painted flat black iron or patina iron and come with raw iron pulleys. The painted flat black model and patina iron fans come with raw iron pulleys that can be upgraded to solid polished bronze pulleys. The flat black painted model fan blades are built with 5 ft diameter sapele wood while the iron patina fan blades are fashioned from solid mahogany. Iron patina fans can have the blade diameter customized, finished 4ft, 5ft and 6ft; unfinished diameter between 4ft and 6ft diameter.
A 1-inch wide flat belt or a round leather belt can power the fan. Both the round belt pulleys and the flat pulleys are 6-inch in diameter. The black painted models cannot be customized The blades can be tilted to regulate or change the airflow.
15 in. optional finished or unfinished solid mahogany base is available.

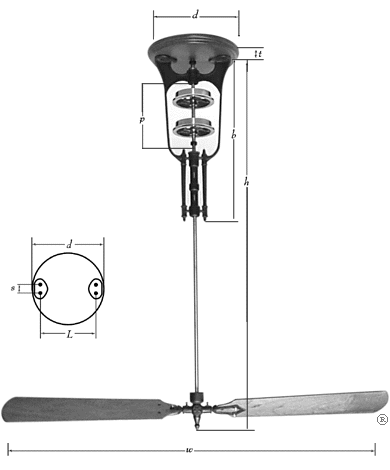

Standard Specifications
h – Overall Height	3 ft.
Optional heights: 4 ft., 5ft — Shown below
b – Body Height	27 in.
p – Distance from bottom pulley to base of body (variable)	6-18 in.
w – Diameter of blades	5 ft.
Mounting Dimensions
L – Distance between mounting leg centers	10 in.
s – Distance between centers of lag screw holes	2.5 in.
Optional Mahogany Mounting Disk
d – Disk Diameter	15 in.
t – Disk Thickness	1.5 in.
