THE MARTIN.™

14 – THE MARTIN .™

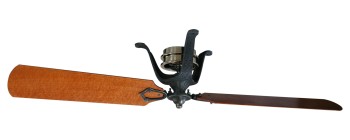

The Martin is a fan especially designed for low ceilings of 8ft and higher. It is built based from a design by the D.L. Bates & Brothers Company, Dayton Ohio. We have redesigned the hub to allow the blades to be positioned at various angles similar to the other Woolen Mill fans.
The fan body is available in painted flat black iron, patina iron or solid oil rubbed bronze patina. The painted flat black model and patina iron fans come with raw iron pulleys. The bronze fans come with polished solid bronze pulleys. The flat black painted model fan blades are built with 5 ft diameter sapele wood while the iron patina and solid bronze fan blades are fashioned from solid mahogany. A 1-inch wide flat belt or a round leather belt can power the fan. Both the round belt pulleys and the flat pulleys are 6-inch in diameter. The black painted models cannot be customized. The blades can be tilted to regulate or change the airflow.
An optional wooden disk is not offered.

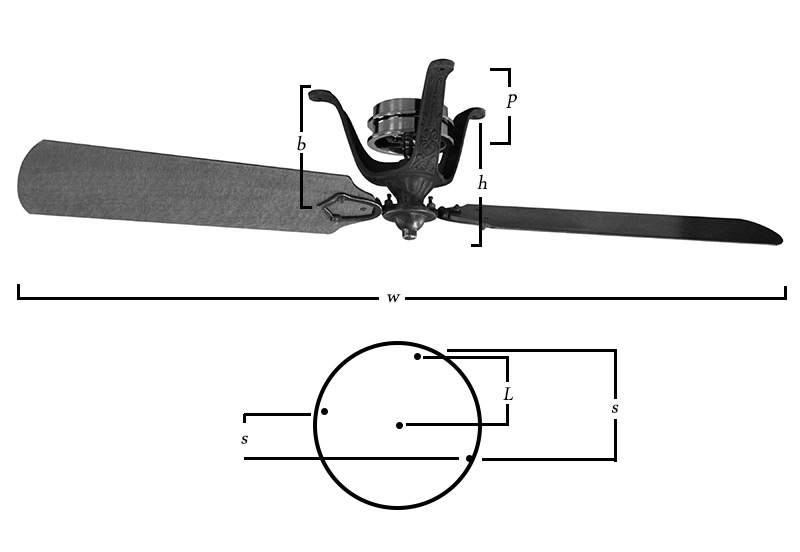

Standard Specifications
h – Overall Height	12”
b – Body Height	10”
p – Distance from bottom of pulley to base of body	4 ½”
w – Diameter of blades	60”
Mounting Dimensions
L – Distance between mounting leg and centers	8”
s – Distance between centers of lag screw holes	12 ½” and one at 13”
