THE PEACOCK. ™
1 – THE PEACOCK.™ This “High Victorian” fan was designed for grand ceilings 10ft and higher. The Peacock is available in oil rubbed solid bronze and comes with two 6 in diameter polished solid bronze pulleys. The stainless steel shaft can be built for a blade drop between 3-5 ft from the ceiling. The solid mahogany blades can be finished in diameters of 4ft, 5ft or 6ft and unfinished in the range of 3-6ft. The blades can be tilted regulate or change the airflow.
15” finished or unfinished solid mahogany base is available.

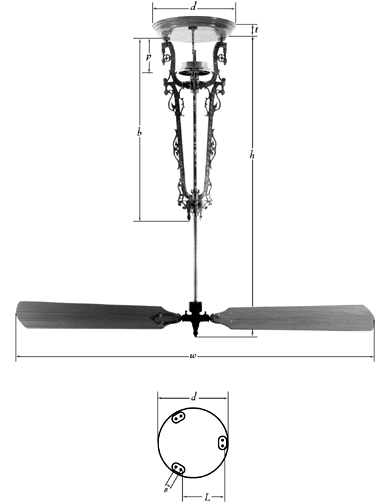

| Standard Specifications | |
| h – Overall Height | 3 ft. |
| Optional heights: 4ft., 5ft. | |
| b – Body Height | 32 in. |
| p – Distance from bottom of pulley to base of body | 6 in. |
| w – Diameter of blades | 5 ft. |
| Mounting Dimensions | |
| L – Distance between mounting leg and centers | 8 in. |
| s – Distance between centers of lag screw holes | 3 in. |
| Optional Mahogany Mounting Disk | |
| d – Disk Diameter | 15 in. |
| t – Disk Thickness | 1.5 in. |
